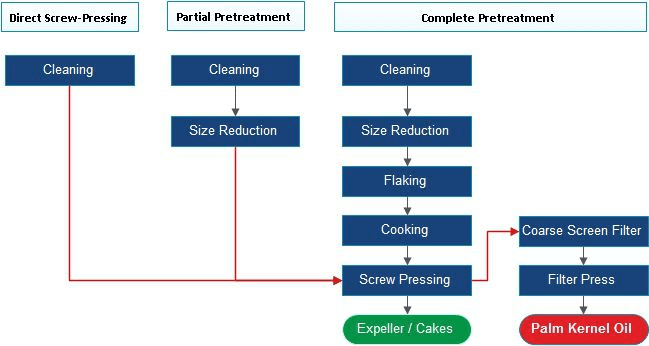

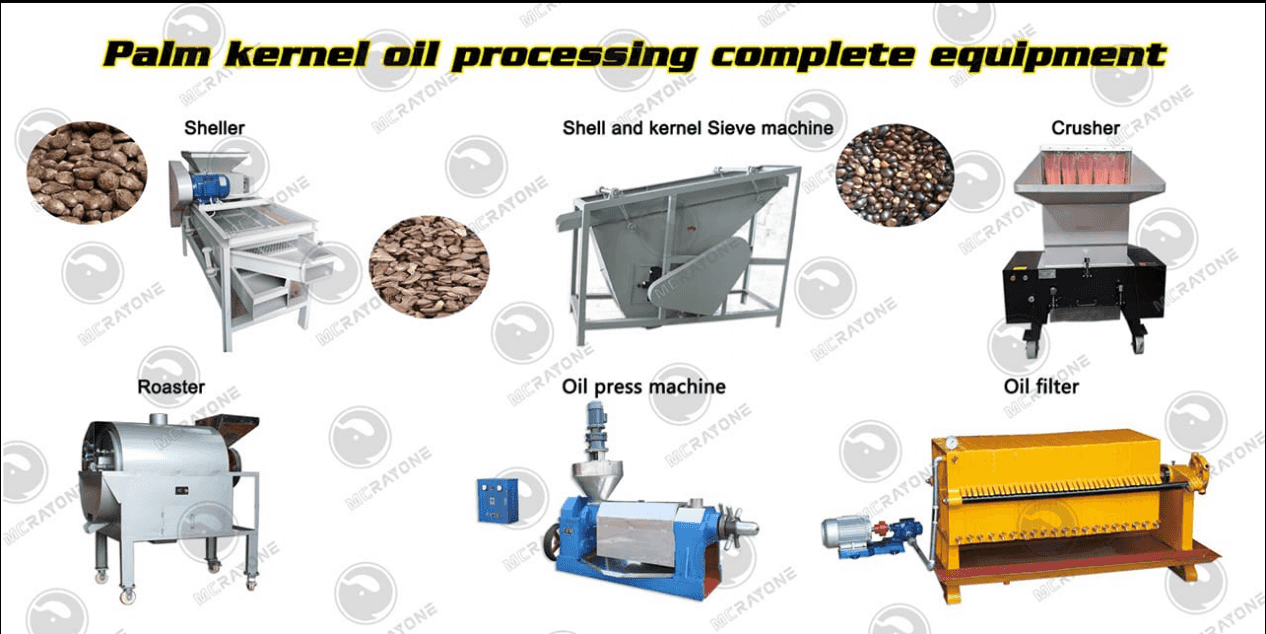

The palm kernel oil pressing process and the palm fruit oil pressing process are two different processes. The palm kernel oil pressing process includes: fiber and core separation section, nuclear classification section, kernel shell separation section, crushing section, steaming and frying section, pressing section and filtering section.



1.Fiber and core separation section:

  At first, fiber and core separation equipment are required to separate the fiber and palm core, which facilitates the processing of subsequent processes and reduces the wear and tear on the equipment. Among them, the fiber can be used as biomass as fuel, and the palm kernel will be transported to the nuclear classification equipment for processing.

2.Nuclear classification section:

  The separated palm kernels are transported to the nuclear grading equipment, and are divided into large nuclei and small nuclei according to the quality of the nuclei. This is conducive to the sufficient processing of palm kernels of different sizes during the subsequent separation of kernel shells.





3.Kernel shell separation section:

  Next, the palm kernels of different sizes are transported to the kernel-shell separation equipment, and the parameters of the kernel-shell separator are adjusted to separate the palm kernel shells of different sizes from the palm kernels, reducing the wear and tear of the palm kernel shell on the equipment.

4.Crushing section:

  Then the separated palm kernels are sent to the crusher for crushing, so that the particle size of the palm kernels becomes smaller and the contact area becomes larger, which is beneficial to the transfer of temperature and moisture in the subsequent process.

5.Steaming and frying section:

  Afterwards, the crushed palm kernels are transported to the steaming pan for high-temperature steaming and frying, and the temperature, moisture and humidity of the palm kernels are adjusted to make them reach the best state before pressing.





6.Pressing section:

  Then the steamed and fried palm kernels are transported to the palm kernel oil press, and the oil in the palm kernels is squeezed out through the continuous extrusion of the palm kernels by the squeezing snails in the palm kernel oil press. After pressing, we can get crude palm kernel oil and press cake. Crude palm oil will be transported to the next process for processing.

7.Filtration section:

  Finally, the crude palm oil is sent to an air pressure oil filter for filtration to obtain relatively clear palm kernel oil. If your budget is high and the local market has requirements for the quality of palm kernel oil, you can process the filtered palm kernel oil through refining equipment, which will not only speed up the quality of palm kernel oil but also increase your profit.



Machine Parameter:

Item	RF600-S Air Filter-Single Cylinder	RF600-D Air Filter-Double Cylinder
Specification	Capacity: 100-120 kg/h Power: 2.2 kw-2P Size: 855*690*1080mm Weight: 190 kg Filtering Barrel Diameter: 610mm	Capacity: 180-220 kg/h Power: 2.2 kw-2P Size: 1550*690*1080mm Weight: 350 kg Filtering Barrel Diameter: 610mm



  The machine is used for refined oil and crude oil. This oil filter is suitable for filtering various edible oils, with high filter plate strength and continuous oil output. It is one of the best-selling oil filters.There are advantages following:

1. Mainly used for filtering series kinds of plant crude oil, such as peanut sesames rape-seeds sunflowers coconut oil, etc.
2. Capacity customized from customer’s request, suitable for different scales of oil refinery and oil factory.
3. Equipped with gear pump which convey the oil to the filtration rooms, saving labor and has higher efficiency.
4. The filtrating force is big, thus can achieve precise result.
5. Matched with different capacity of oil press machine.
6. Simple operation, light weight, convenient operation, matched with oil pump and motor.

  Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

  We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

  Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

  Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.

  In the course of our company’s decades of development, we have obtained multiple official certificates, such as :



• ISO-9001 international quality system certification
• CE certificate
• China’s AAA credit enterprises
• Certification for honoring contracts and keeping promises
• Certificate of Integrity management demonstration unit
• Certificate of Quality Service Integrity Unit
• Enterprise Credit Rating Certificate



  Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
