In the oil press industry, the stone removing machine is also widely used in the pretreatment stage of raw materials to remove stones and other impurities in the raw materials (like sesame, peanuts, soybeans, rapeseed, etc.), to ensure the smoothness of the oil press process stability and product quality.

  The specific gravity stone removing machine usually adopts inclined plane or inclined vibrating surface, through the action of vibration and inclination, the particles can flow and distribute on the surface. Due to the different specific gravity of the particles, the heavy particles will settle to the lower layer, while the light particles will move to the upper layer.

The specific operation process is as follows:

1.Feeding: Raw materials are transported to the feed port of the specific gravity classifying and stone removing machine, and the raw materials can be evenly put into the classifier through conveying equipment (such as a belt conveyor).

2.Vibration and inclination: The classifier generates flow and layer distribution on the surface of raw materials through vibration and inclination. The parameters of vibration and tilt can be adjusted to meet the separation requirements of different particles.

3.Separation: Under the action of vibration and inclination, stones and other impurities in the raw materials settle to the lower layer due to their larger specific gravity. At the same time, the lightweight particles will move upwards, forming different grades of product stratification.

4.Collection: The separated products of different grades can be collected through the discharge port set by the equipment. The products of each grade can be collected or further processed separately.

Machine Parameter:

Item	Capacity	Host power	Fan power	Weigh	Size
AY-TQSX56	Capacity: 400-600kg/h	1.1kw	1.1kw	160kg	1200*700*2000mm
AY-TQSX63	Capacity: soybean 2T/H (sunflower seed 1t/h) (sesame 2t/h)	0.5kw	3kw	480kg	1550*900*2600mm
AY-TQSX80	Capacity: 2t/h (sunflower seeds)	0.5kw	4kw/5.5kw	≈530kg	1550*1100*2600mm
AY-TQSX100	Capacity: 4t/h (sunflower seeds) 8-9t/h (soybeans)	0.25kw*2	7.5kw	350kg	1400*1210*1800mm
AY-TQSX125	Capacity: 5t/h (sunflower seeds) 10-12t/h (soybean)	0.37kw*2	11kw	400kg	1400*1460*1800mm

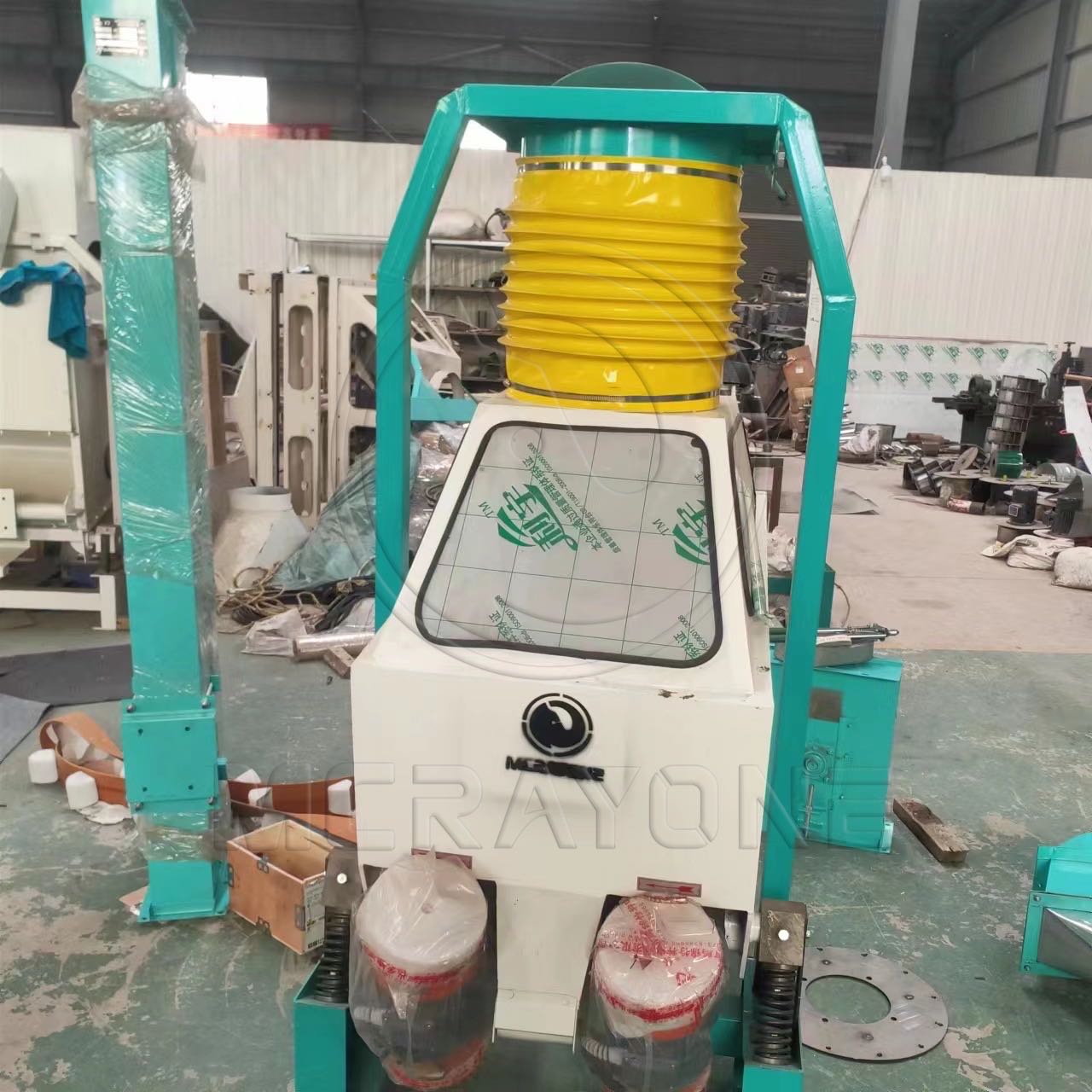

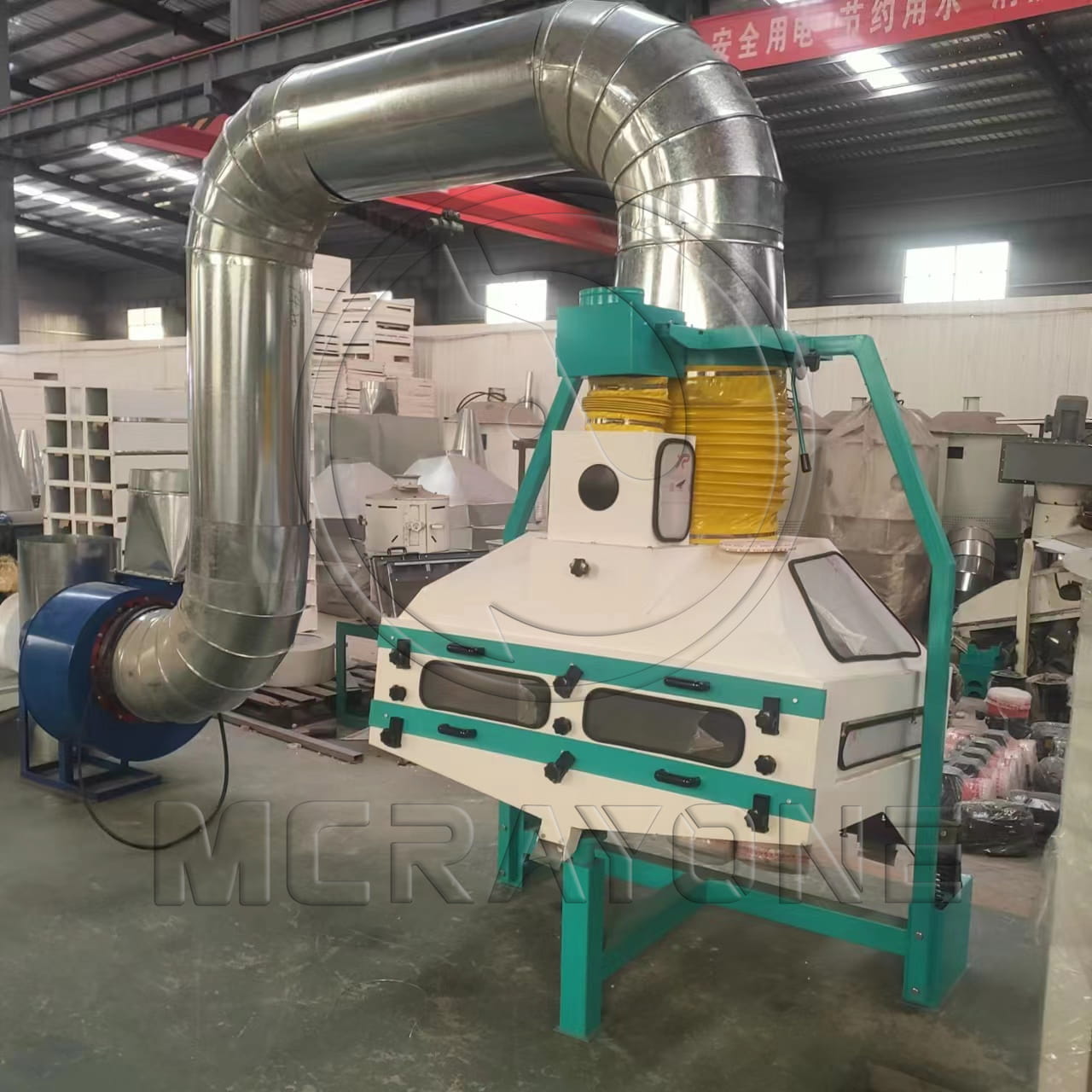

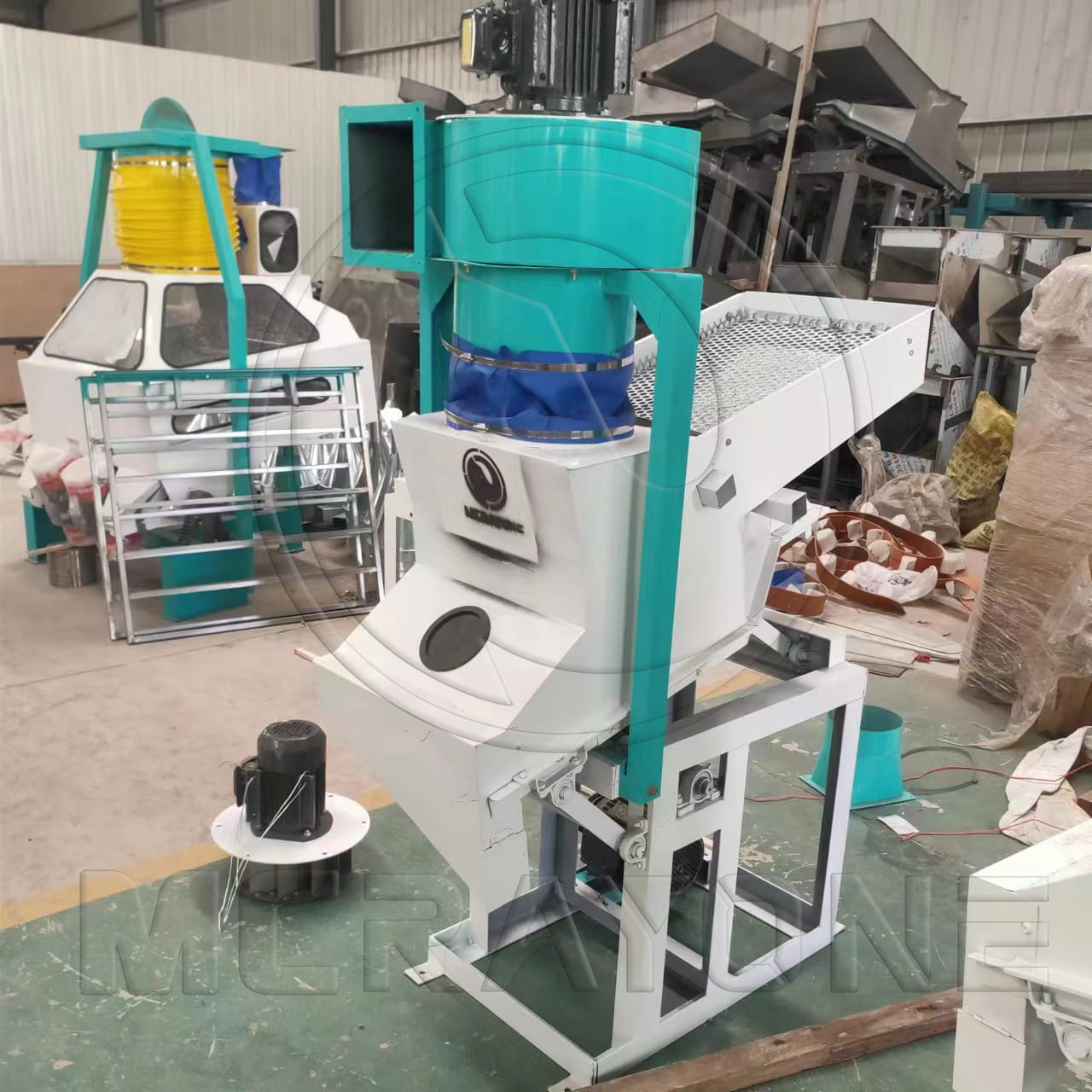

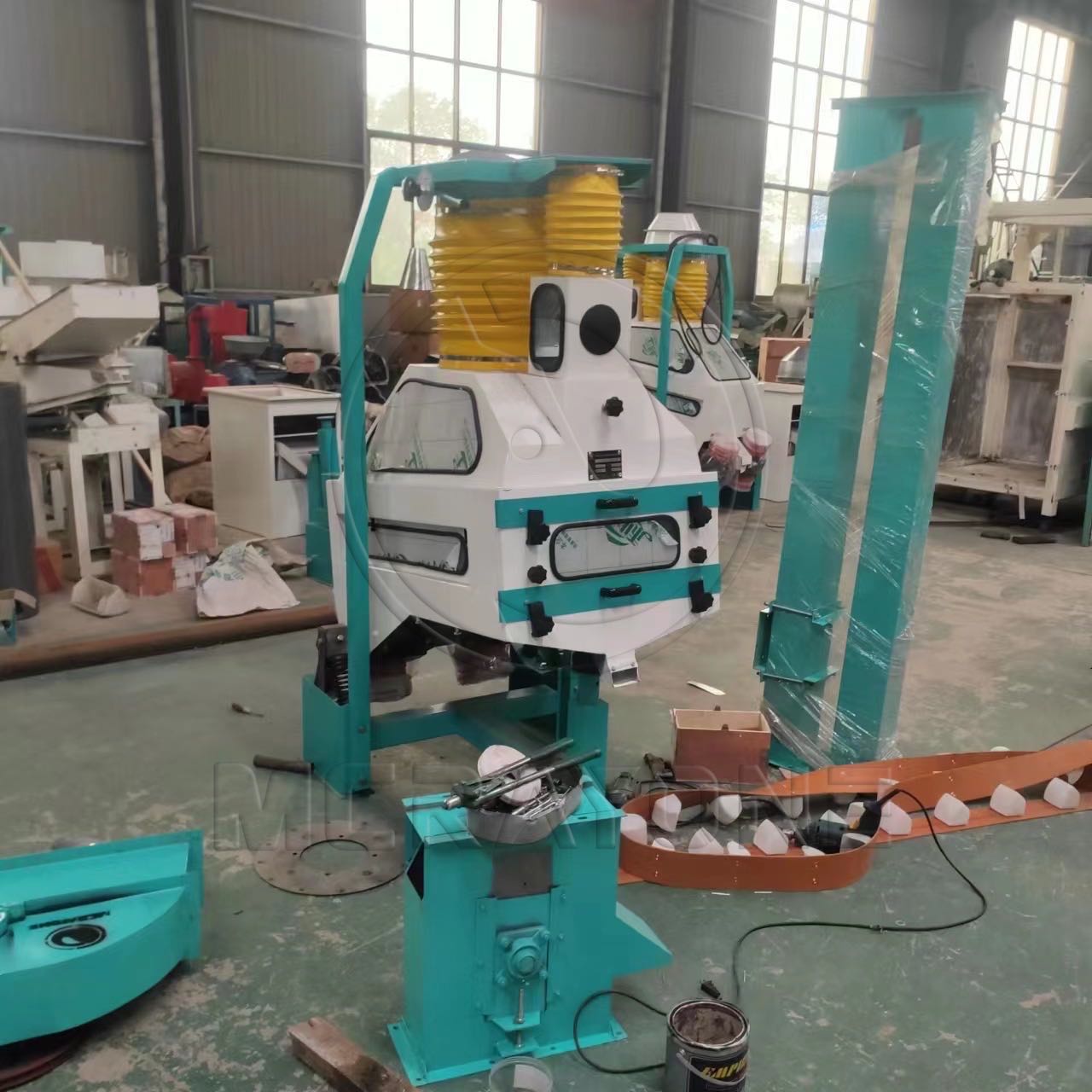

Details Picture:





1.High stone removal efficiency, stone removal sieve plate is fish scale structure, suitable for grain processing plants with high stone content in raw material.

2.Easy operation and compact structure.

3.For different materials, the inclination angle of the slate can be adjusted within the range of 10-14 degrees to pursue the best process effect

4.The fan is externally connected, the whole machine is sealed, and there is no dust outside, which meets the ideal environmental protection requirements. Reciprocating swing structure, rubber bearings are used at the joints, with small vibration and low noise.

5.The transmission adopts self-aligning bearings and anti-loosening devices to make the mechanical performance more stable
