Roaster is a kind of equipment for frying various kinds of oil seeds when making vegetable oil, Generally, the temperature in the process of frying seeds is controlled at 160 to 230 ℃ (according to the oil crop).usually used in small or medium scale vegetable oil mil plant. The oil seeds that can be processed by roaster are peanut/ groundnut, soybean, sunflower seeds rapeseed, sesame, palm kernel, etc.

  Roaster is mainly composed of a machine frame, a hopper, a drum and a fire shield. The function of roaster is to adjust temperature and moisture of the oil seeds, fully destroy the cell structure of the oil seeds, so as to improve the oil yield and improve the quality of oil and cake.

  The operation process of roaster: First, preheat the roaster. Then, put the oil seeds into the hopper for feeding into the roaster. Next, under the continuous rotation of the roaster, the oil seeds will be flipped and fully heated. At last, after the roasting process is finished, the oil seeds will be transported to oil presser for extracting oil out or directly stored for use later.



  According to different heating methods, the roaster can be divided into three types: fire wood heating type, electric heating type and gas heating type.



Machine Parameter:

Type	Fire	Fire	Fire
Item	ZCW63	ZCW100	ZCW125
Specification	Capacity: 80-130kg/h(120-150℃) 160-260kg/h(80-100℃) Power: 0.75kw-6P Size: 1200*760*1100mm Weight: 320 kg	Capacity: 150-200kg/h(120-150℃) 300-400kg/h(80-100℃) Power: 1.1kw-6P Size: 1450*820*1100mm Weight: 400 kg	Capacity: 300kg/h(120-150℃) 600kg/h(80-100℃) Power: 1.5kw-6P Size: 1800*1130*1450mm Weight: 630 kg
Type	Gas	Gas	Gas
Item	GCW63	GCW100	GCW115
Specification	Capacity: 80-130kg/h(120-150℃) 160-260kg/h(80-100℃) Power: 0.75kw-6P Gas Compsumption :3m3/h Size: 1200*760*1100mm Weight: 320 kg	Capacity: 150-200kg/h(120-150℃) 300-400kg/h(80-100℃) Power: 1.1kw-6P Gas Compsumption :4.5m3/h Size: 1450*820*1680mm Weight: 400kg	Capacity: 220-250kg/h(120-150℃) 450-500kg/h(80-100℃) Power: 1.5kw-6P Gas Compsumption :6.6m3/h Size: 1635*1150*1830mm Weight: 520kg
Type	Gas	Electrical	Electrical
Item	GCW125	DCW63	DCW100
Specification	Capacity: 300kg/h(120-150℃) 600kg/h(80-100℃) Power: 1.5kw-6P Gas Compsumption :9m3/h Size: 1800*1150*1990mm Weight: 630kg	Capacity: 80-100kg/h(120-150℃) 160-200kg/h(80-100℃) Power: 0.75kw-6P Electric heating power:16KW Size: 1200*760*1100mm Weight: 255kg	Capacity: 100-150kg/h(120-150℃) 200-300kg/h(80-100℃) Power: 1.1kw-6P Electric heating power:22KW Size: 1450*820*1780mm Weight: 310kg

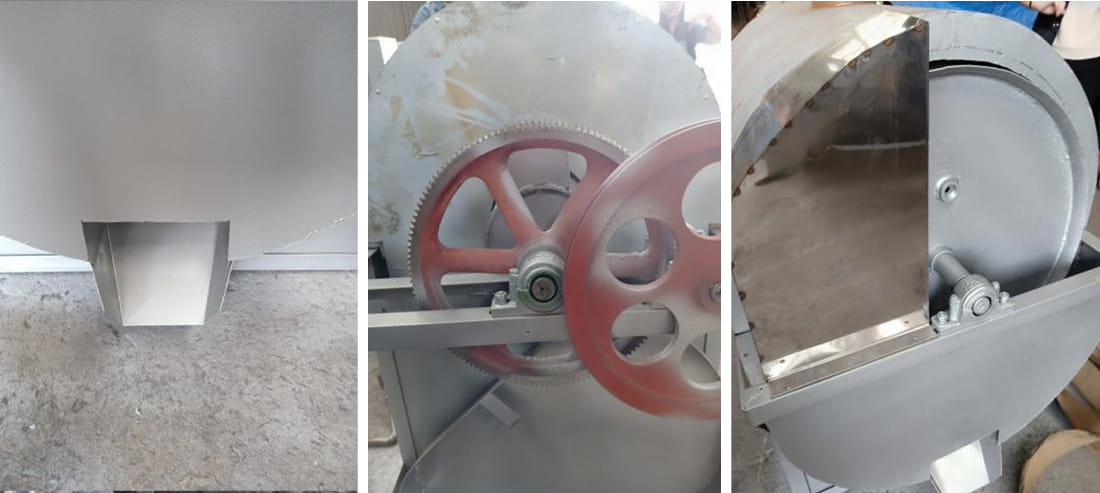

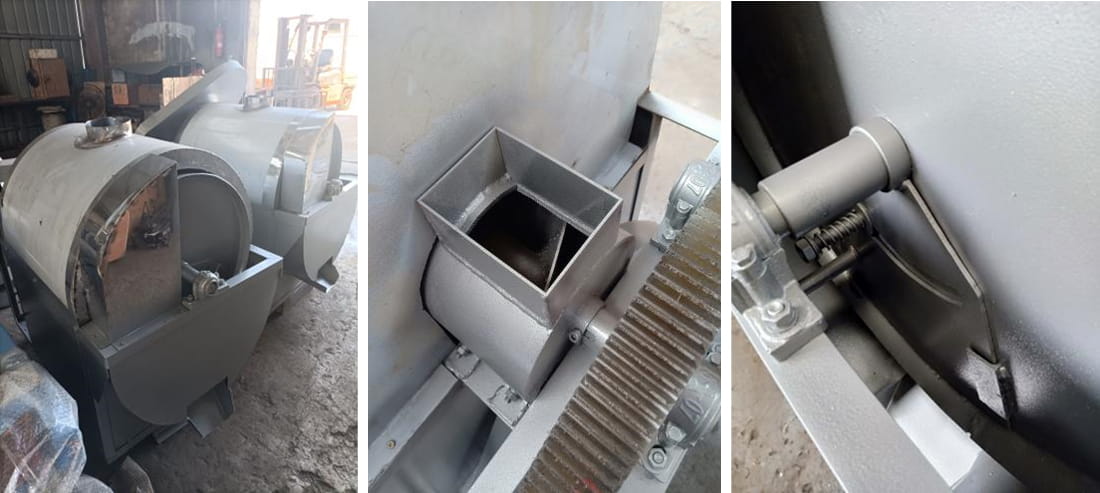

Details Picture:

The roaster is mainly often a necessary machine in oil seeds pretreatment process. No matter

your oil mill is small scale or medium scale, for increase the oil yield and improve the quality of oil, it is very necessary to have a roaster.

1.Using the heating element to heat, fast to warming. It is barrel shaped with seal and works by rolling.

2.The motor is equipped with forward, rewind controller and temperature regulator, it is convenient to cook and take out the materials.

3.Uniform heating effect, controllable temperature for meeting the needs of various oil seeds

4.Simple structure, easy to operate, and time and effort saving.

5.Good performance, good quality, durable and long service life.

Ruian Every Machinery (MCRAYONE) is located in Zhejiang province, China. Our annual production capacity of oil press machines and related machines is around 10,000 sets. These machines have sold to all over the world, such as South Africa, Nigeria, America, India and so on. Thanks to our experience in the oil press industry (more than 40 years ), we know the demands and best-selling models of each market, so we can provide the most suitable machines to our customers.

We have an experienced engineer team, a professional Research and Design department, and a perfect Quality Control System. All the parts are made by our own factory and the quality can be guaranteed. In addition, we provide a quality warranty for one year.

Our business involves in small-sized oil pressing series, oil engineering designing, equipment manufacturing and installing, project contracting, technical service and so on. Moreover, we have important partnerships with many large Chinese companies, such as China Oil and Food Import and Export Corporation. We are their designated foreign trade exporter and their supplier for small oil presses.

Our goal is to establish a long-term relationships with our customers, based on providing quality machines at a reasonable cost and maximize the customer returns with comprehensive service.

In the course of our company’s decades of development, we have obtained multiple official certificates, such as :

• ISO-9001 international quality system certification
• CE certificate
• China’s AAA credit enterprises
• Certification for honoring contracts and keeping promises
• Certificate of Integrity management demonstration unit
• Certificate of Quality Service Integrity Unit
• Enterprise Credit Rating Certificate



Our company has grown into one of the leading oil press manufacturers in China, and our popularity has spread abroad. We welcoming all kinds of orders.
